Coin Cell Electrolyte Filler

0.5-50ml Laboratory Pipette with Glass Bottle

contact us
Quick Inquiry

Share:

50ml Battery Electrolyte Injection Filler Machine For Pouch Cell Liquid Filling

•   Excellent  chemical  resistance,  components  are  made  of PTFE, FEP, BSG, PP

•   Fully autoclavable at 121℃

•   Four ranges of bottle-top dispenser covering a volume range from 0.5mL to 50mL

•   Easy for cleaning and maintenance

•   The optional flexible discharge tube with safety handle permits fast and precise dispensing

•   Vapor pressure max. 500mbar, viscosity max. 500mm2/s,

•   temperature max. 40℃, density max. 2.2g/cm3

•   Dispensemate is supplied with S40, GL32, GL38,GL25, GL28





Specifications

Precision

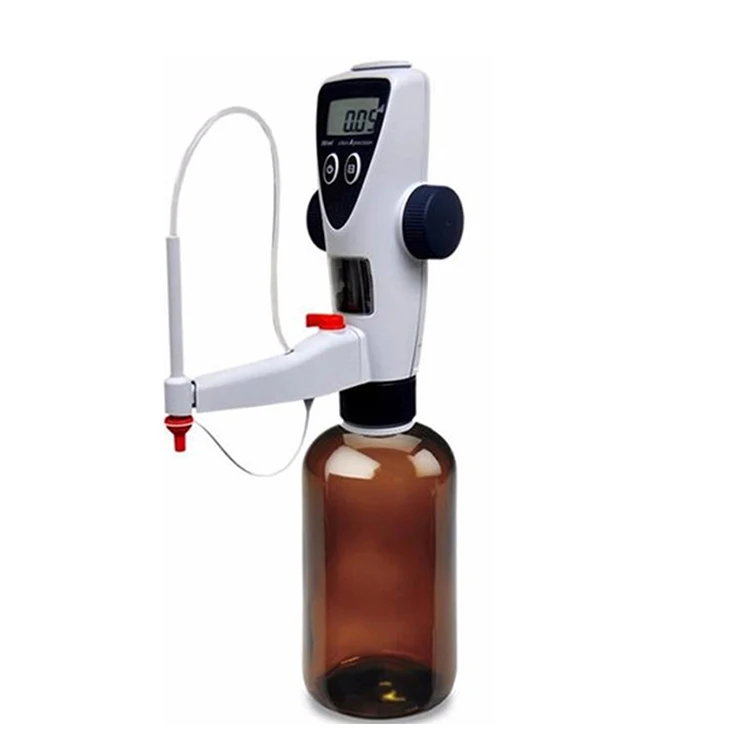

The Titrette bottletop burette has an innovative new measuring system which matches the Class A accuracy of glass burettes and, if needed, can offer the precision of 3 decimal places below 20mL. This is an important feature for users who need to work within the Class A error limits of glass burettes according to DIN EN ISO 385 or within volumetric tolerance per ASTM E287.

User Serviceable

It can be quickly and easily disassembled in a matter of minutes – for cleaning, to replace the piston/cylinder, or to replace the batteries. Maintenance is easy and convenient, without the need to send it out for repair.

Protection

To protect light-sensitive media, the installed clear cylinder inspection windows can be easily replaced with the supplied clip-on amber-colored windows

Profile

All components move within the housing, reducing headroom requirements. The compact design and the light weight ensure good stability. The titrating tube can be adjusted horizontally and vertically

Operation

The large hand wheels provide smooth, precise control from rapid to dropwise titration.

Warranty

One Year limited warranty with lifetime support

Warning

Operating limits and exclusions - This instrument is designed for titrating liquids, with the following limits:

Temperature of instrument and reagents must be between 15º and 40º C (59º and 104ºF)

Vapor pressure up to 500mbar

Viscosity up to 500 mm^2/s

Altitude: Maximum 3000m above sea level

Relative humidity: 20% to 90%
