Key attributes
| voltage | 220V Electrical Equipment | automatic grade | Semi-Automatic |
| machinery capacity | Customizable | place of origin | Guangdong, China |
| key machines | Sorting machine, spot welder, etc | Weight (KG) | 2000 |
| brand name | XIAOWEI | dimension(l*w*h) | 100.0X60.0X80.0 cm |
| Product name | Cylindrical Battery Pack Assembly Line | dimension(l*w*h) | Customizable |
| Advantage | One-stop Solution | Suitable for | 18650/21700/26650/32650/32700, etc |
| After-sales Service Provided | Online and overseas training | Certification | CE Certificated |
| Usage | Battery pack assembly | Keyword | Cylindrical Battery Assembly Equipment |
| Application | 1-150 cells battery modules |
Packaging and delivery
| Selling Units | Single item |

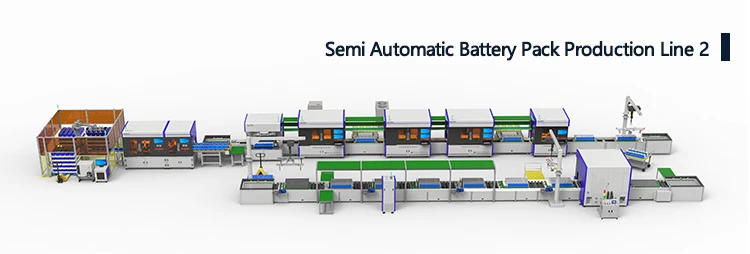

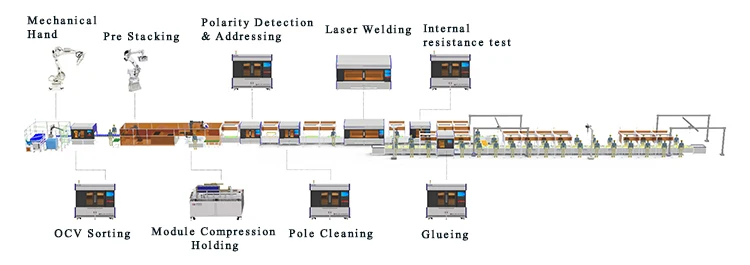

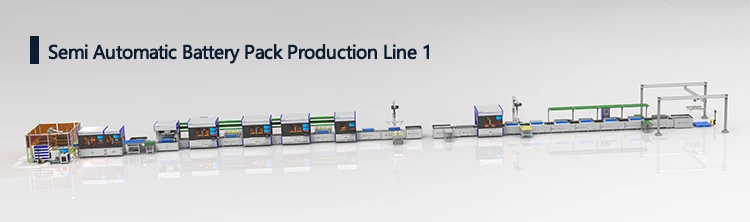

Semi-automatic Battery PackProduction Line

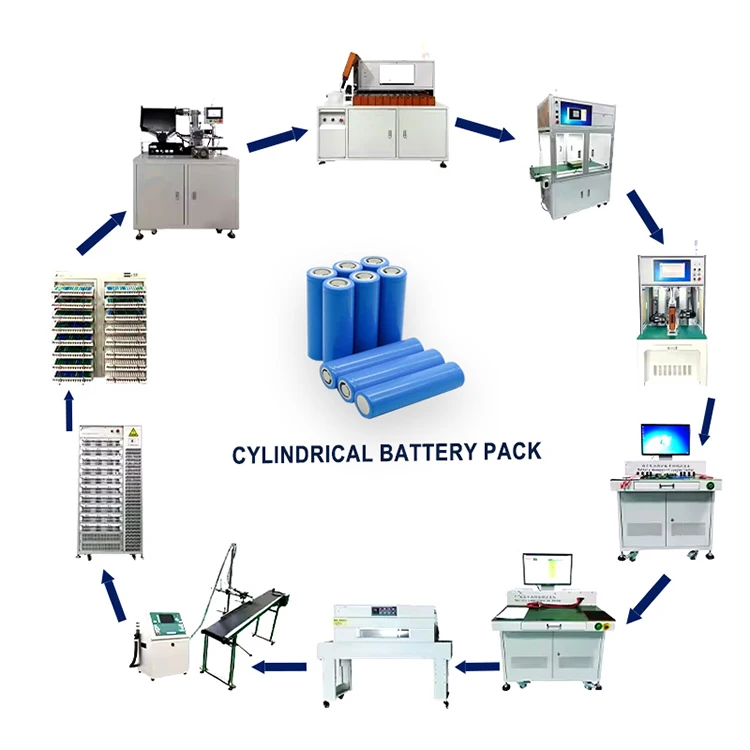

for 18650 21700 26650 32700 Cylindrical Battery Module Assembly

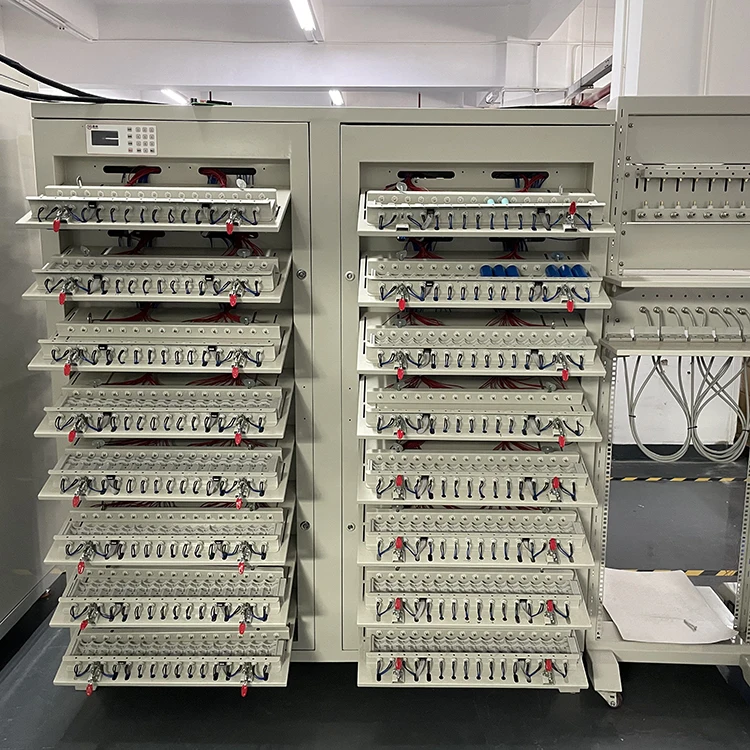

Battery Formation and Capacity Grading Cabinet
Used for battery formation, charging and discharging to measure capacity and sort cells by performance.

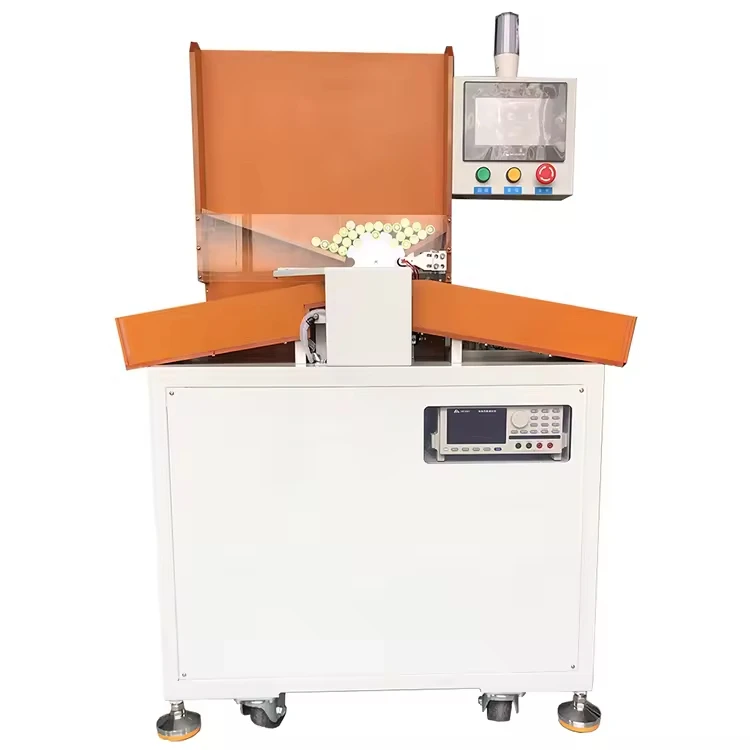

Cell Sorting Machine
Automatically sorts battery cells based on voltage, capacity and internal resistance for pack consistency.

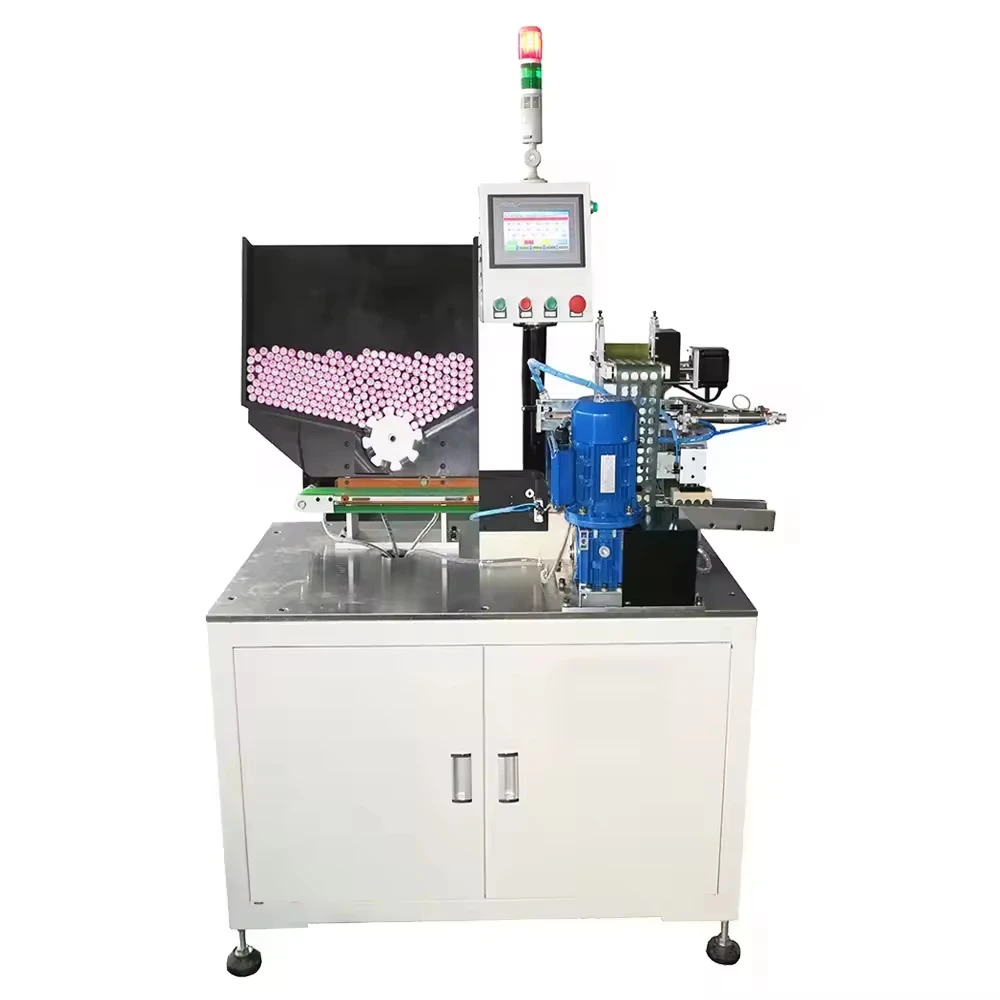

Cell Sticking Machine
Applies labels or barcodes onto battery cells or packs for identification and traceability.

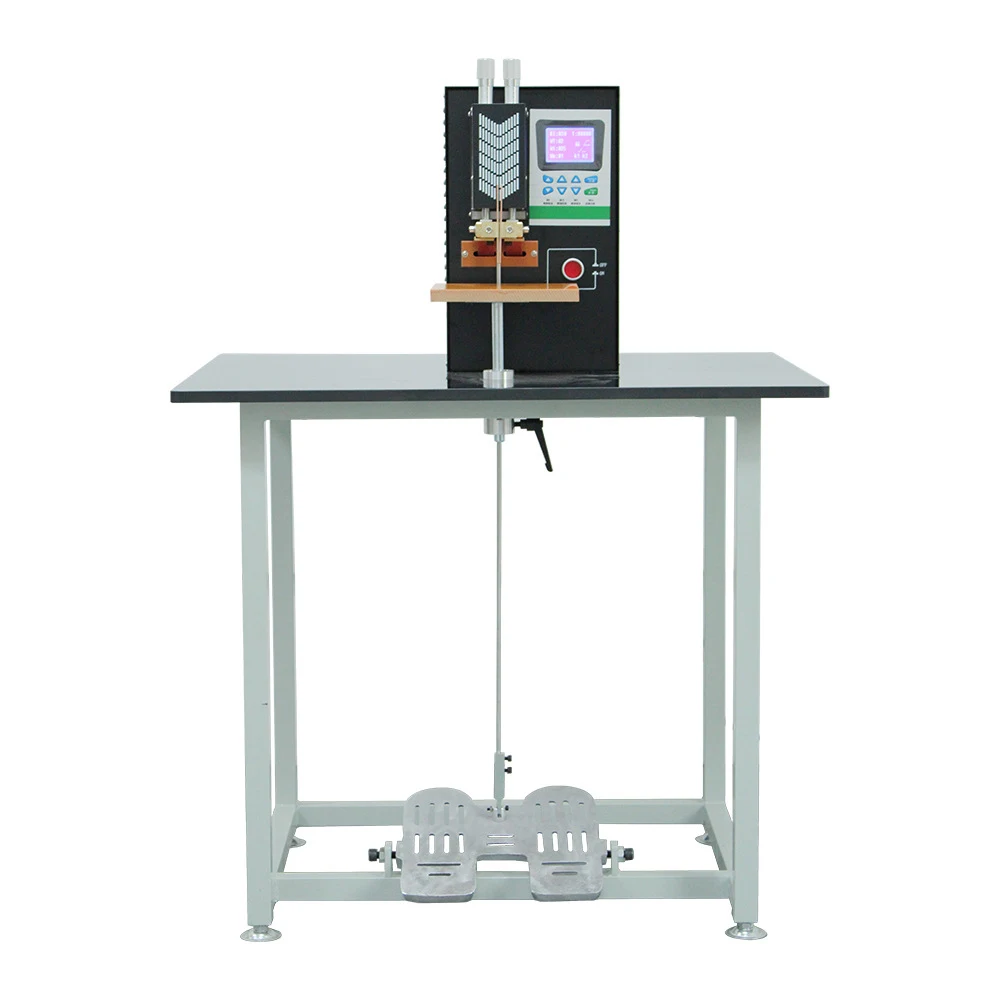

Spot Welding Machine
Welds nickel strips to battery cells with stable energy output for strong and reliable connections.

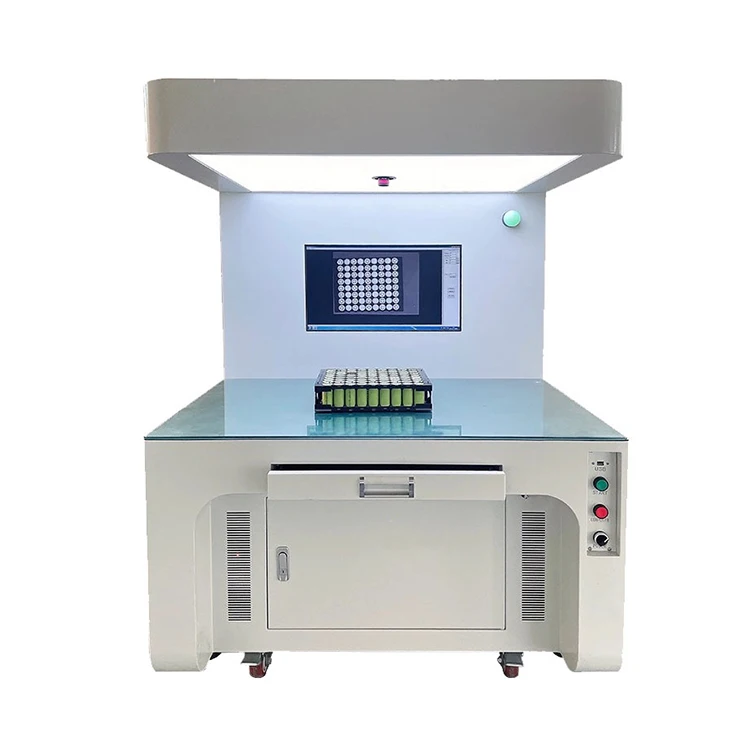

CCD Polarity Inspection Machine
Uses vision cameras to detect battery polarity and orientation, preventing reverse installation errors.

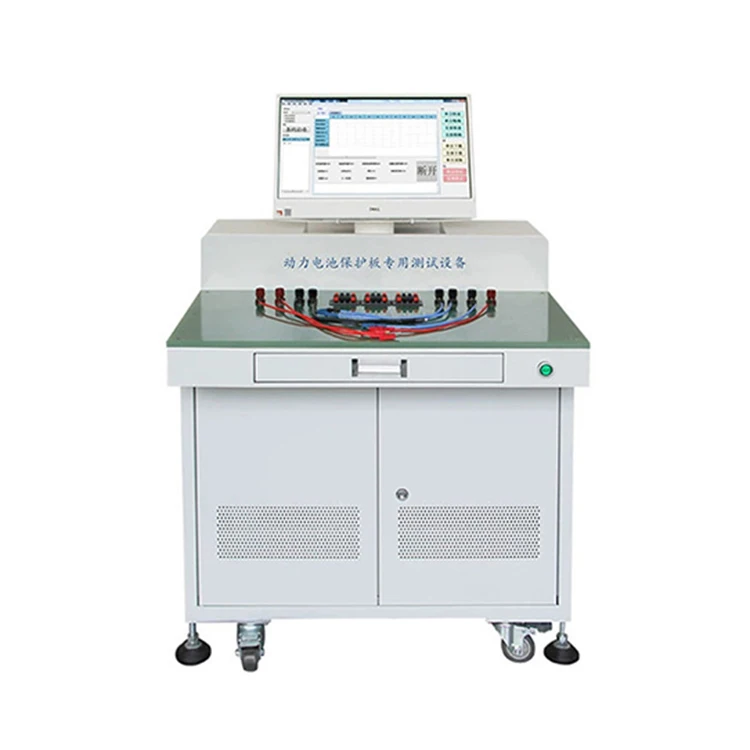

BMS Protection Board Tester
Tests protection functions of BMS boards including overcharge, overdischarge, short circuit and balancing.

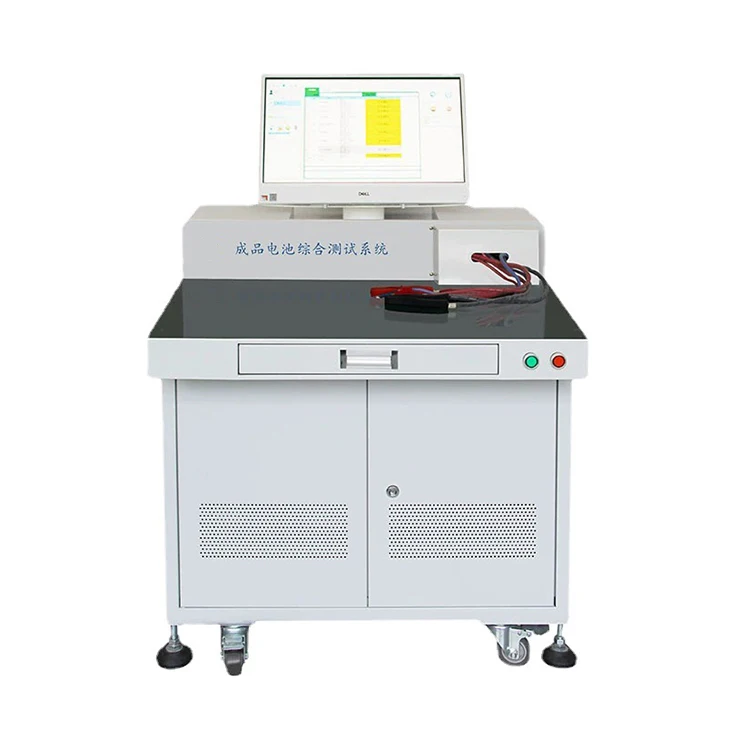

Battery Pack Comprehensive Tester
Performs final electrical tests on battery packs such as voltage, internal resistance and functional safety.

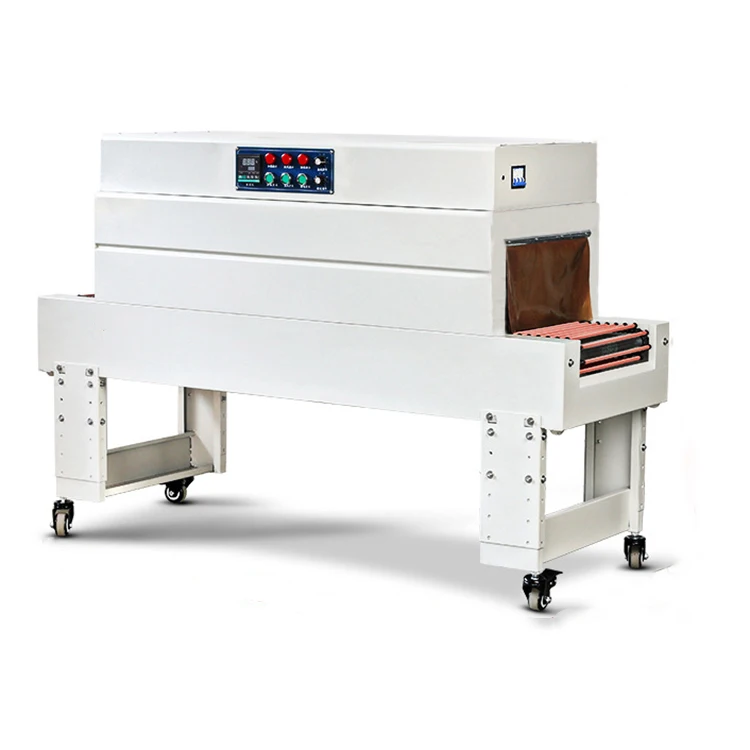

Battery Pack Heat Shrink Machine
Applies heat shrink film to battery packs for insulation, protection and professional appearance.

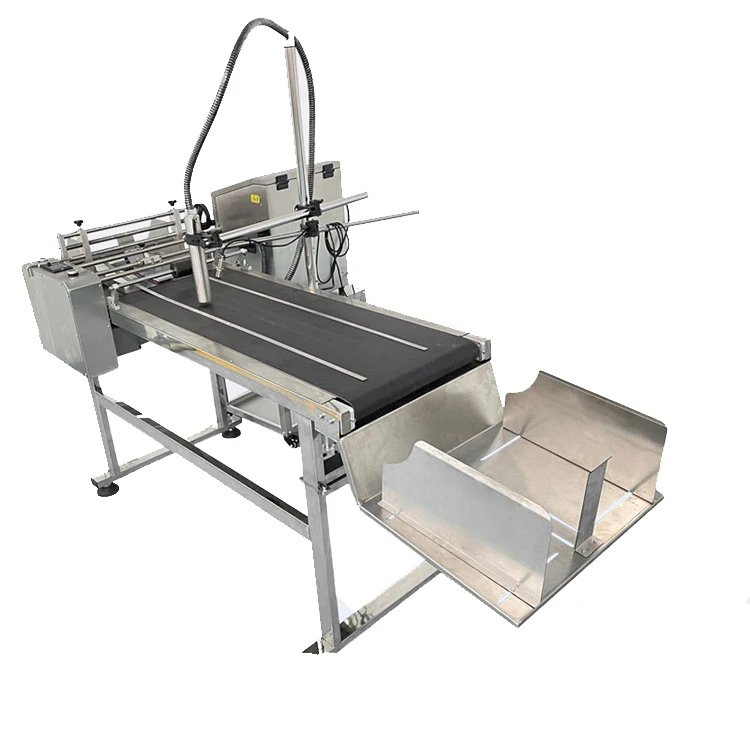

Battery Inkjet Coding Machine
Prints batch numbers, dates or QR codes on battery cells or packs for traceability and production tracking.

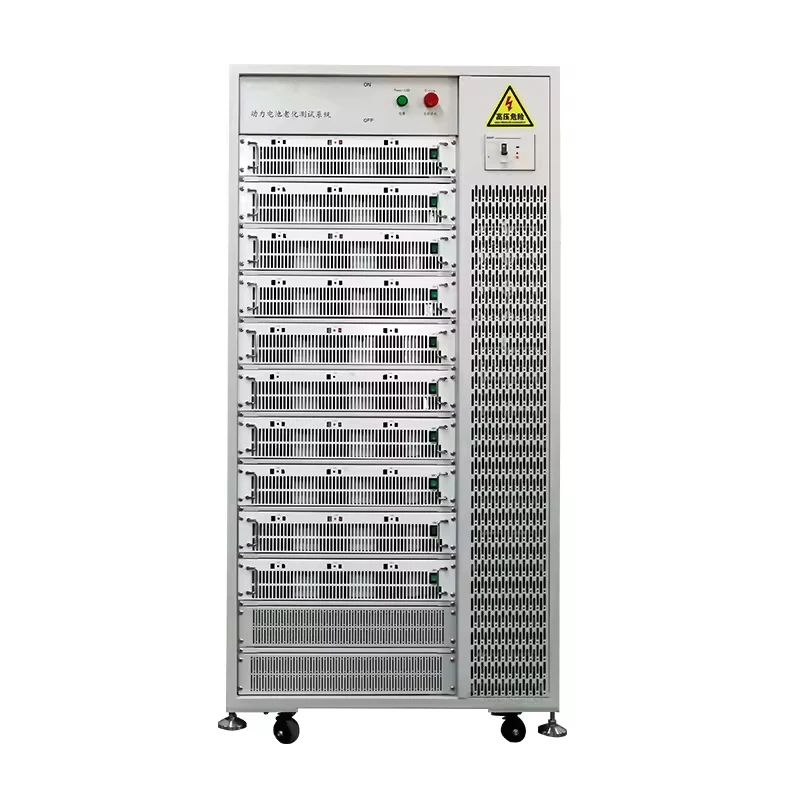

Battery Aging Test Cabinet
Used to age battery packs under controlled load to verify stability, safety and long-term performance.
Customization Services
Customize your battery pack production line to meet your needs.
Production line can be customized according to your request
| Product Name | Cylindrical Battery Pack Production Line |
| Production line dimension | Customizable |
| Suitable cell type | Cylindrical cell 18650/21700/32650/4680 |
| Production efficiency | > 3500-12000pcs/h (number of cells), Customizable |
| Loading mode | Four axis robot / servo module |
| Application | 1-150 cells battery modules |
| Warranty | One year |
| Technical Support | Online and overseas training ensures your production line operates without problems. |
