Lab Coater

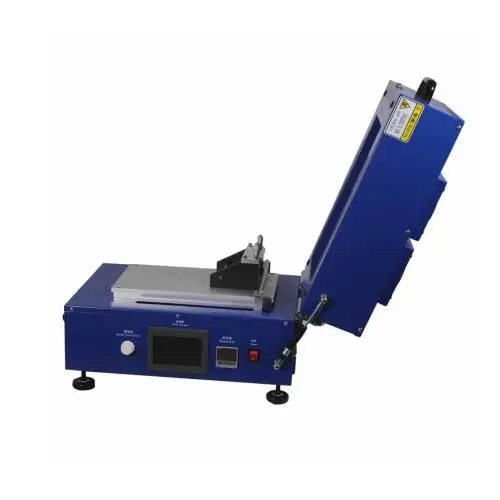

Laboratory Battery Cell Heat Vacuum Film Applicator Coater Machine

contact us
Quick Inquiry


Laboratory Battery Cell Heat Vacuum Film Applicator Coater Machine For Lithium Battery Electode Slurry Coater

1 The Film coating machine with dryer is used for varies kinds of materials coating. It is supplied with vacuum pump and heating system, having an precision heating temperature upto 200℃.

2 Thefilm coating machineis mainly used for lithium battery electrode coating for coin cell assemble and pouch cell research.

3 Build-in oil-less vacuum pump make the machine with small volume and less noise.

4 New designed Touch Screen control make the operating more easy and simple





XIAOWEI 100-250






Effective coating

area(mm, size can be customized)

100 x 250

150 x 250

250 x 300

250 x 350

250 x 500

250 x 800

Stroke length

(mm, length adjustable)

10 - 250

10 - 250

10 - 300

10 - 350

10 - 550

10 - 800

Vacuum chuck


(mm, W*L, , size can be customized)

100 x 365

150 x 365

250 x 400

250 x 450

250 x 650

250 x 900

Power supply

110VAC or 220VAC

Coating speed

0 - 120 mm/sec variable; accuracy: 10mm/sec

(The coating speed range can be customized)

Vacuum pump


One oil free vacuum pump

Film applicator

One standard film applicator is included as below:

*Analog film applicator with fix coating width

*0~3mm gap/coating thickness adjustable

*Coating accuracy: ±3μm

Optional parts:

Digital micrometer

Adjustable width

Different gap/coating thickness

Heating function


Platen heating(standard)

1. Heating on the vacuum chuck/coating plate
2. Built in digital temperature controller with accuracy of +/-1°C
3. Max. Heating Temp: 120°C

4. You can choose to have the cover or not, with cover, it will faster the drying speed as it will keep the

Top cover heating

1. Heater pre-installed on the top cover

2. Built in digital temperature controller with accuracy of +/-1°C

3. Suspension support helps open cover easily and safely

4. Max. Heating Temp: 200°C

Surface finish


Surface roughness


Vacuum board


5052 Aluminum alloy


CE Certificate


One year limited warranty with lifetime support

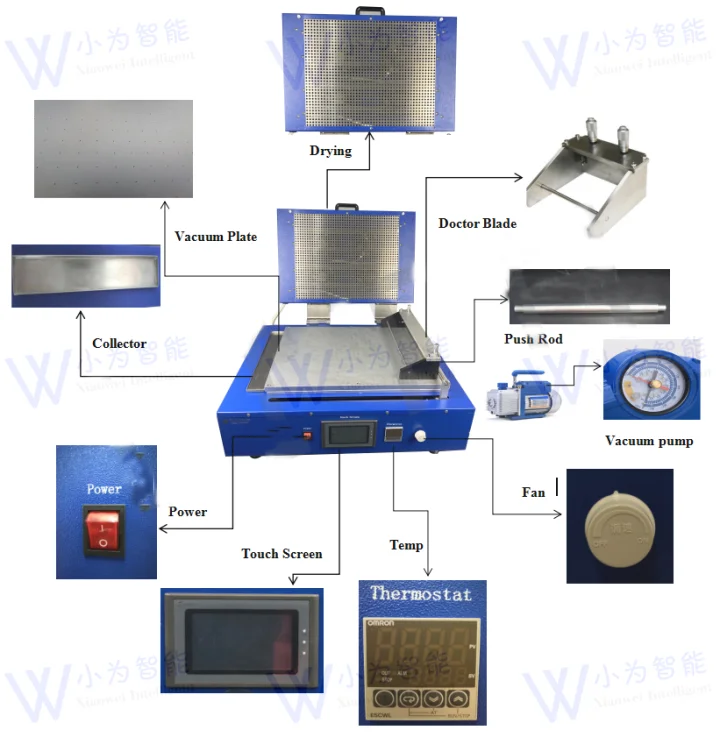

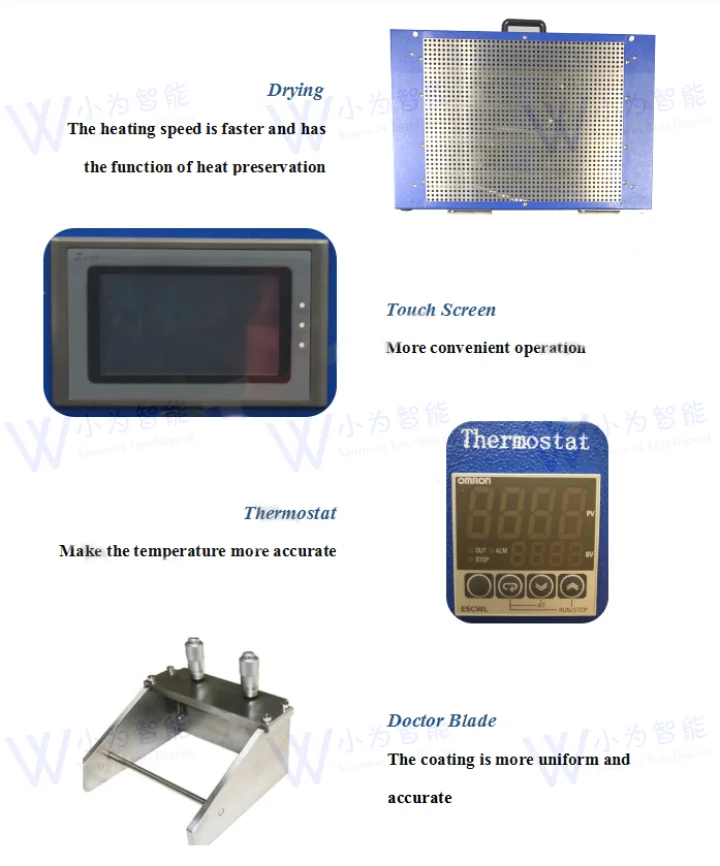

Detailed Images
