Laboratory Small Vacuum Mixer

Quick Inquiry

Laboratory Small Vacuum Mixer For Lithium Battery Electrode Slurry Mixing

Introduction

1 The Small vacuum mixer is and laboratory vacuum mixing machine designed to produce coating slurry by mixing small batch of chemical and compound under vacuum to remove gas bubble and protect sample from oxidation.

2 This vacuum mixer is with build-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed at 320rpm. So we don’t need to connect with vacuum pump separately.

3 The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing.

4 It is excellent for preparing battery electrode paste and various ceramic materials in research lab.

Technical parameter

Model	Vacuum mixer MSK-SFM-7
Voltage Input	Single Phase 110VAC or 220VAC, Customized
Power	150W
Power plug	Supply with required power plug according to different country
Rotary Speed	320 rpm

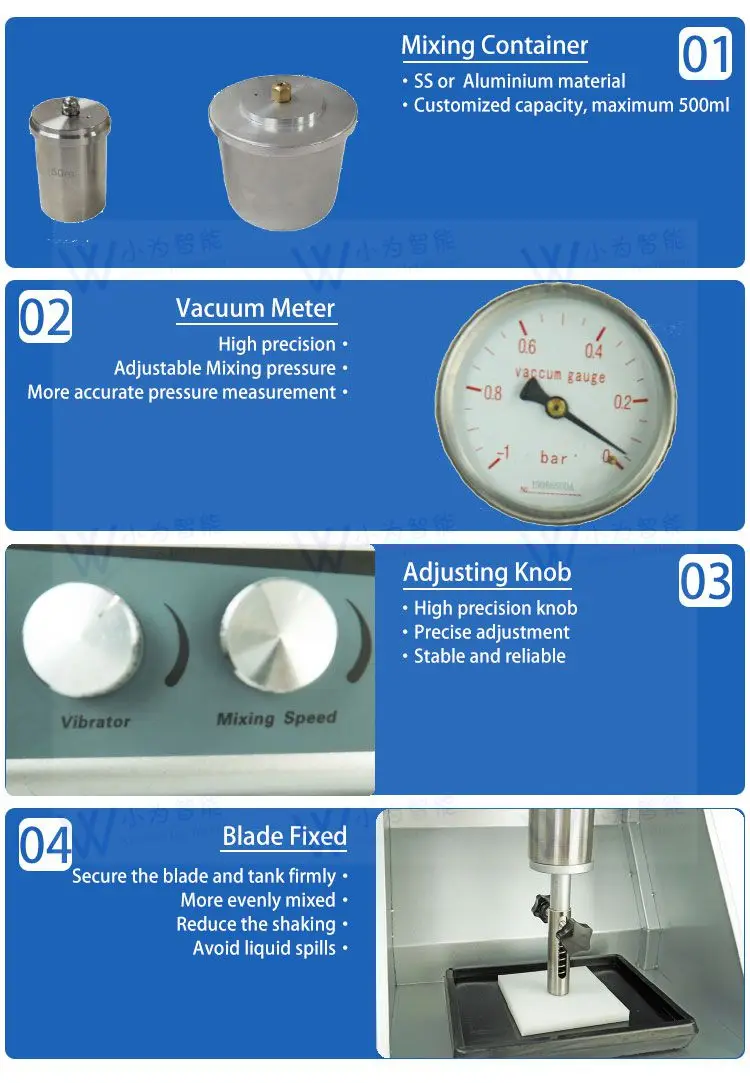

Mixing Container	One 250ml acrylic container 50/125/500ml stainless steel container is optional Mixing blade is built in top of cover of container.
Vacuum pump & Vacuum Level	Built in single stage vacuum pump Vacuum Level: -0.08~0.09 Mpa
Vibration Plate	Vibrating at 1000 HZ
Dimensions (LWH)	13''L x 12''W x 21''H, 330310510mm
Shipping Dimensions	16''L x 19''W x 24''H, 420500600mm
Net Weight	70 lbs, 30kg
Compliance	CE certified
Application Notes	Please note that the main duty of this product is to remove the bubbles from the slurry during the wet mixing stage. For the best mixing uniformity, please select our professional Vacuum mixer system or vacuum planetary disperse mixer system
Warranty	One year limited with lifetime support

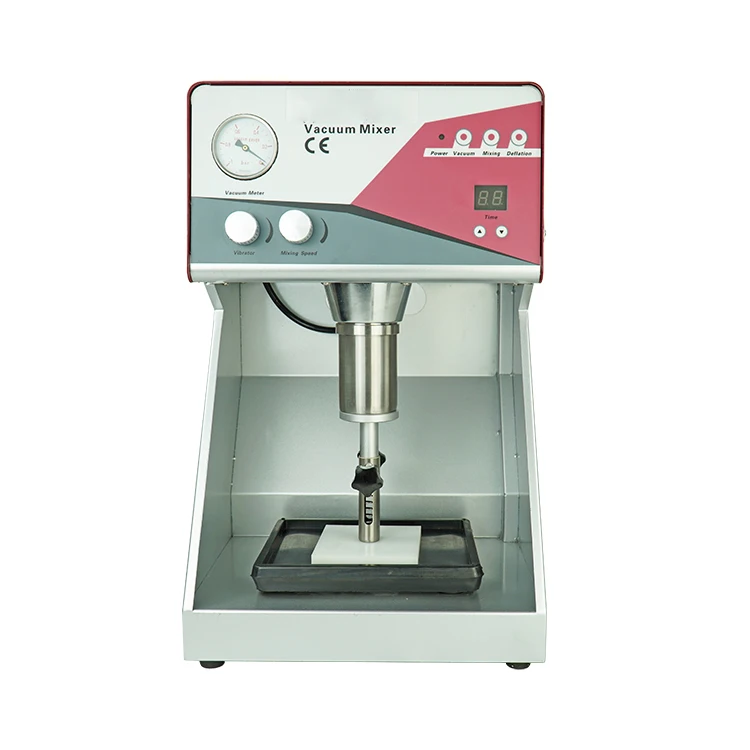

Product Image

Lab Mixer

Laboratory Small Vacuum Mixer

Laboratory Small Vacuum Mixer For Lithium Battery Electrode Slurry Mixing
