Pouch Cell Laboratory Assembly Machine Line For Pouch Battery

Quick Inquiry

Structure of batteries

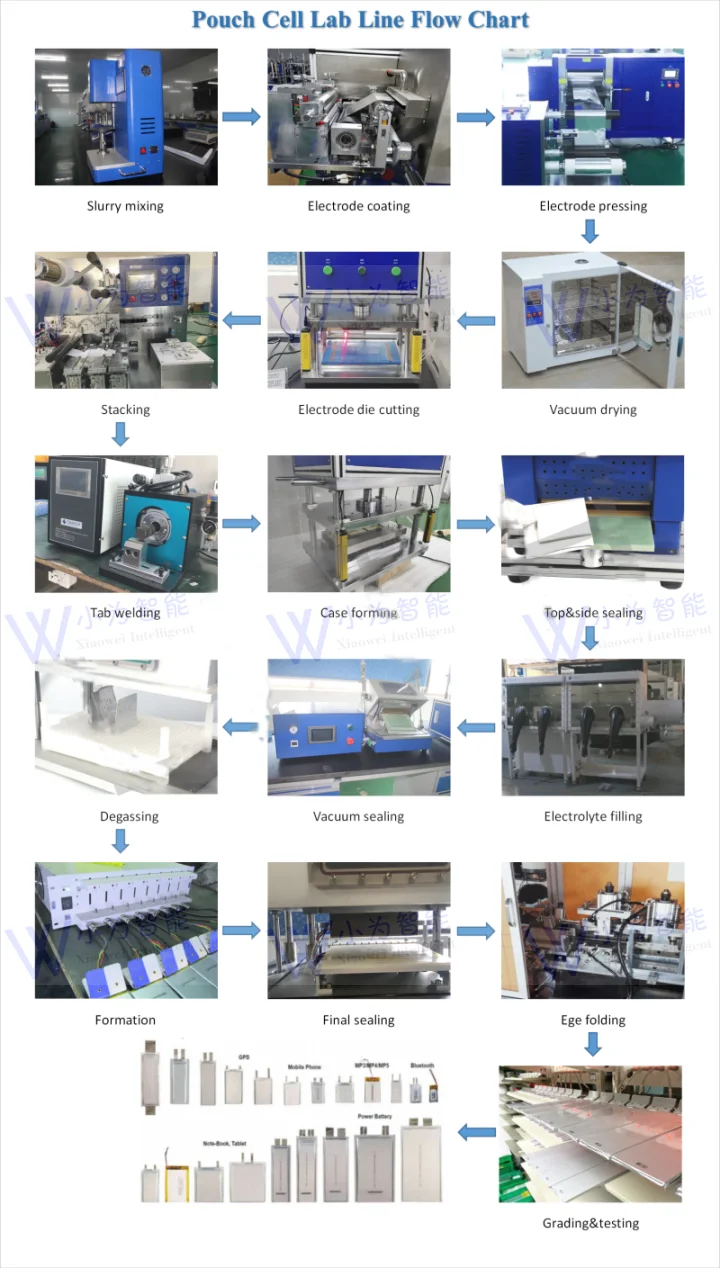

Pouch cell lab line flow chart:

Process	Item	Product Name	Description
Powder processing	Furnace	Muffle Furnace/Tube Furnace/Atmosphere Muffle Furnace...
Slurry vacuum mixing	Mixer	Compact Vacuum Mixer With Vibration Stage & Two Containers (150 & 500ml)	With 150ml and 500ml container, Rotary Speed:320rpm
		Compact Dual-Shaft Planetary Vacuum Mixer Machine With A 500 ML Container	Dual-Shaft, 500ml container, Rotary Speed:600rpm
Electrode coating	Coater	Laboratory Electric Heat Film Coating Machine For Electrode Coater With Dryer	Effective coating area:100*250mm
			200*300mm
			250*550mm
			250*800mm
		Micrometer Adjustable Film Applicator With Digital Display-100mm Width	With digital gauge,coating width:100mm
		Lab Compact Film Vacuum Coating Machine with 300mm Width Doctor Blade	Bar coating, coating width:100mm
Electrode pressing	Press Machine	Electric Roller Press Machine With Variable Speed	100100(diawidth,mm),electric,with heating function
			100*200
			100*300
			100*400
		Lab Small Pressing Calendar Rolling Machine	100100(diawidth,mm),maual,without heating function
			100*200
			100*300
Electrode cutting	Die cutter	Lab Electrode Die Cutter For Pouch Cell Electrodes Cutting	Suitable for small size electrode cutting
			Max. customized size:140mm L x 80mm W
			Including one customized cutting die
			190USD per extra cutting die
		Lab Electrode Die Cutter For Pouch Cell Electrode Sheet With Two Size Range Optional	Suitable for various size range electrode cutting
			Max. customized size:200mm(L) * 300mm(W)
			Including one customized cutting die
			190USD per extra cutting die
Electrode stacking	Stacker	Laboratory Electrode Stacking Machine For Pouch Cell Production Line	Suitable for various electrode size stacking, manual
		Semi-Automatic Stacking Machine For Pouch Cell Electrodes	Max suitable electrode size:200mm*200mm
Tab Welding	Ultrasonic spot welder	Al Tab Ni Tag Ultrasonic Welding Machine	2000W, 40kHz, max.40 Layers
			3000W, 40kHz, max.60 Layers
Case forming	Forming machine	Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films	Including one customized forming die
			1010USD per extra forming die Max customized size：80mm*80mm
			Including one customized forming die
			1120USD per extra forming die Max customized size：120mm*120mm
Top&side welding	Hot sealing machine	Compact Heating Sealer For Sealing Laminated Aluminum Case Of Pouch Cells	With rubber sealing blade, suitable for sealing with tab, sealing length:200mm
			Sealing length:300mm
Electrolyte injection	Electrolyte filing machine	Bottletop Electrolyte Digital Dispenser With 32oz Boston Round Glass Bottle: 1- 10 Ml Adjustable	Manual operation, digital display
		Single Head Electric Injection Pump For Lithium Ion Battery Electrolyte Filling	Automatic, PLC controlled
Electrolyte Diffusion & Degassing	Diffusion & Degassing Chamber	Pouch Cell Electrolyte Diffusion/Degassing Chamber	Can be put into glove box；Operation Temperature:-20 to 40 ℃
Vacuum sealing	Vacuum sealer	Laboratory Vacuum Sealing Machine	Can be put into glove box, sealing length:200mm
			Sealing length:300mm
			Sealing length:400mm
Battery performance testing	Battery tester	5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment	Testing range from 12.0 mA to 6000 mA, up to 5V.
		10V10A 8 Channel Lithium Ion Battery Tester Equipment For Experiment	Testing range from 12.0 mA to 10000 mA, up to 10V.

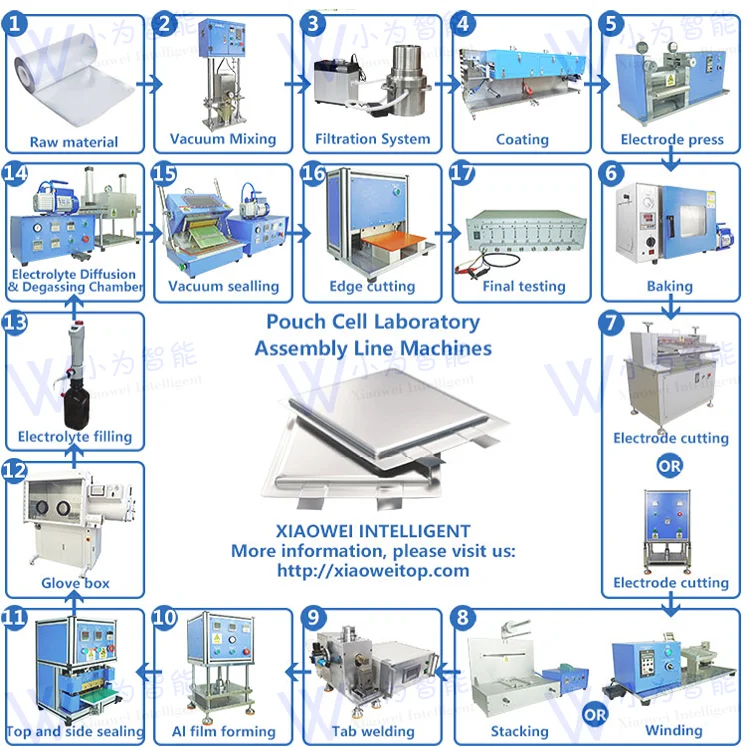

Pouch Cell Laboratory Line

Pouch Cell Laboratory Assembly Machine Line For Pouch Battery

Pouch Cell Laboratory Assembly Machine Line For Pouch Battery
